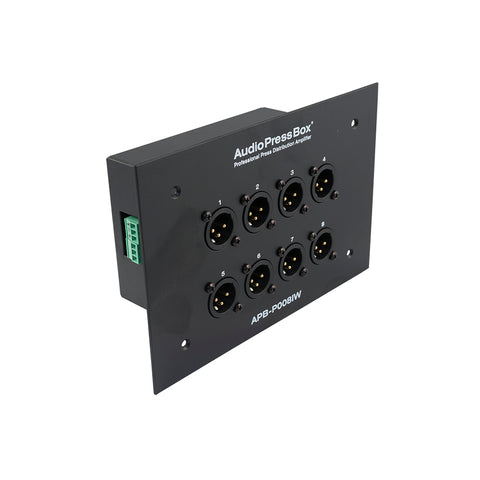

AudioPressBoxAPB-P008 IW-EX

Passive in wall design with 1 LINE Input, 8 MIC Outputs

A professional passive press box (Audio Splitter) expander featuring 8 MIC outputs designed for system integrators for fixed installation.
The IW stands for IN WALL as it is for flush mounting.
Each Output is independet transformer balanced and isolated.
It has 1 LINE input (3-pin phoenix connector). It has 1 Link output (3-pin phoenix connector) to connect more APB-P008 OW/IW in a daisy chain.

It can be fed directly by a mixing console.

WBOX Series Flush mounting boxes - SCAME
Dimensions: 153x98x70mm
Net Weight: 0.123 kg
Colour: Orange
SCAME Flush mounting box is designed for system integrators for fixed installation together with our APB-008 IW-EX and or APB-P008 IW-EX.

Flush mounting junction box is included in the APB-P008 IW-EX package.

It is also availaible in accessories section.

Source: Balanced Line Output of professional audio equipment.

IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY


  • 8 High quality balanced Outputs, each Output is independent transformer isolated
  • AudioPressBox delivers audio in broadcast quality

Note: Source: Balanced Line Output of professional audio equipment.

8x TRANSFORMER Transformer Separately transformer isolated outputs.

Press conference with a mixing console and speakers:

 AudioPressBox, Mult Box, PressBox, Mult Box, Press Patch Box, Pressesplitter, APB-P008 IW-EX

Audio Press Box APB-P008
Type Expander
Groups 1
Inputs 1
Input connectors ballanced, 3-pin phoenix connector
Max. input level Line: +24dBu
Input Impedance 2,5kOhm
Ouputs 8 MIC level (-38dBu), 1 Input link (Line level)
Ouput connectors ballanced, XLR-M connector
Transfomer isolated outputs Yes (each output)
Nominal Output level -38dBu (0dBu on the input)
Maximum Output level -14dBu (no load) -20dBu (150 Ohm)
Output Impedance 150 Ohm
Frequency Response 10Hz to 30kHz/-1dB
Dimensions (WxHxD) 180x120x63mm
Weight 960g

If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
