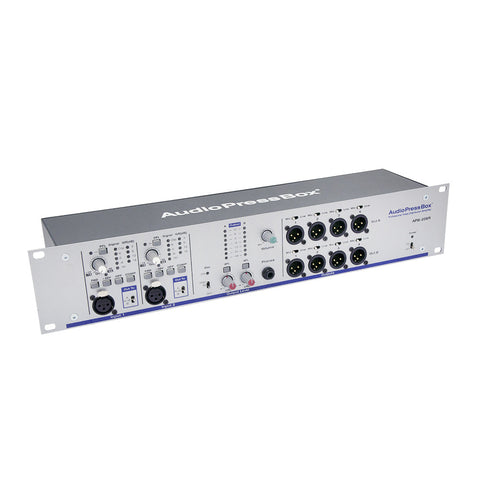

AudioPressBoxAPB-208 R-RPS

Rack design with 2 routable Inputs (A, A+B, B), 8 Mic/Line Outputs,4 buffered outputs for APB expanders, Redundant Power Supply

A professional active press box and a drive unit (Audio Splitter) serving both as an active press box and a drive unit for additional expanders.
It features 2 MIC/Line Inputs (A,A+B,B) and 8 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
What is more, it can also be used for bilingual conferences as it features 2 separate channels A and B.
Each input can be routed to channel A or channel B or both at the same time.
There is a bus A with 4 Line/MIC outputs and bus B with 4 Line/MIC outputs.
It also serves as a drive unit because it has 4 buffered expander Outputs and can power additional 96 Line/MIC Outputs.
So with this unit you can route route 2 individual inputs to up to 104 Line/MIC Outputs!
You can connect any of our expanders to it.

The RPS unit does also have a Redundant Power Supply.

Drive unit for : APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX

IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY


  • 2 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD
  • Each Input is routable to A/(A+B)/B Outputs Group

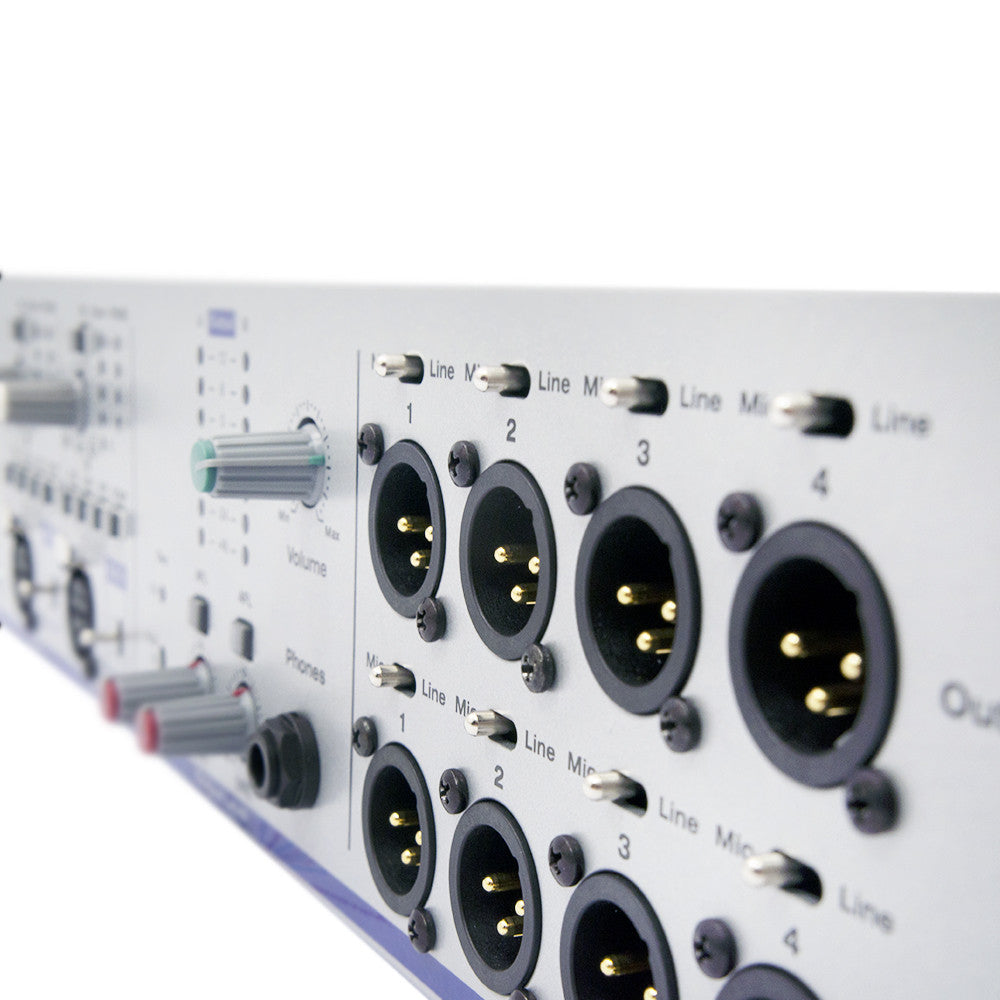

  • 8 High quality independent transformer balanced and isolated outputs
  • Each Output is switchable between MIC or LINE level
  • 2 internal Output Groups: 4x Output A and 4x Output B
  • 2 separate buffered A and B Outputs for driving up to 48 channels of passive
    extenders: APB-024 R-EX, APB-008 IW/OW, APB 008FB, APB P008 IW/OW or
    APB-P112
  • Switchable High-Pass filter for each Input channel
  • Switchable Compressor and Limiter for each Input channel
  • PFL/AFL for each Input/Output channel
  • Constant level Test signal oscillator with no mistake switch operation
  • Headphones control Output for PFL/AFL
  • Redundant Power Supply
  • AudioPressBox delivers audio in broadcast quality

Note: Source of: APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX


+48V +48V If you are about to use condenser microphone, turn Phantom power switch ON to feed your microphone with 24/48V. If you use dynamic microphone or microphone with his own power, you can switch this OFF.
PAD PAD If you are using microphone as an input, this button should be set to “Off” position. If you are using input from the mixing console or CD player, please set this switch to “On” position.
BUS Routing switch Each microphone could be routed to 2 separated groups or to both groups at the same time. This is useful, if you have two (or four) lecterns and you want to route signal from each microphone (or group of 2 microphones) to separated tracks. Reporters can edit the recording easily, if they have both lecterns on separated tracks. You can label the outputs in the output extender with names of the lecterns or groups and reporters easily decide which group output they want to use.
AFL AFL For better check your levels, you can isolate output from each group to your headphones. You can check the output levels of each group by hearing. Just push the button and you will hear output from particular group.
PFL PFL To check your levels only for one input, push this button and you can see the level of output for corresponding input. You can easily see if all microphones have the good output levels and identify, if some of the microphones are too loud or too silent in the output.
COMP COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.
HPF HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.
OSC OSC (Oscillator operation switch) To test signal level, which is coming to the outputs, you can switch this Test 1kHz sine signal oscillator on. After recipients set the levels in their recording devices, you should switch this function OFF. When compressor switch is set to ON, output signal level won’t exceed this maximum output level.
8x TRANSFORMER Transformer Separately transformer isolated outputs.
24V 24V DC Power Supply
driver 4x24 2 x bus A, 2x bus B buffered expander outputs

Press conference with a mixing console and speakers:

 AudioPressBox, Mult Box, PressBox, Mult Box, Press Patch Box, Pressesplitter ,APB-208 R



Audio Press Box APB-208 R
Type 2 in 8 out
Groups 2
Input section
Inputs 2
Input connectors Balanced, XLR
Input Gain MIC +22/+62 dB LINE -4/+36 dB
Max. input level Limiter ON
Mic: -10/-30dBu
Line: +36/-4dBu
Limiter OFF
Mic: -2/-42dBu
Line: +24/-16dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 kOhm Line: 3,5 kOhm
Output section
Outputs 8 Line/MIC level (4x Output A, 4x Output B), 4 expander outputs
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load)
+14dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 30/160Hz (filter) to 30kHz/-1dB

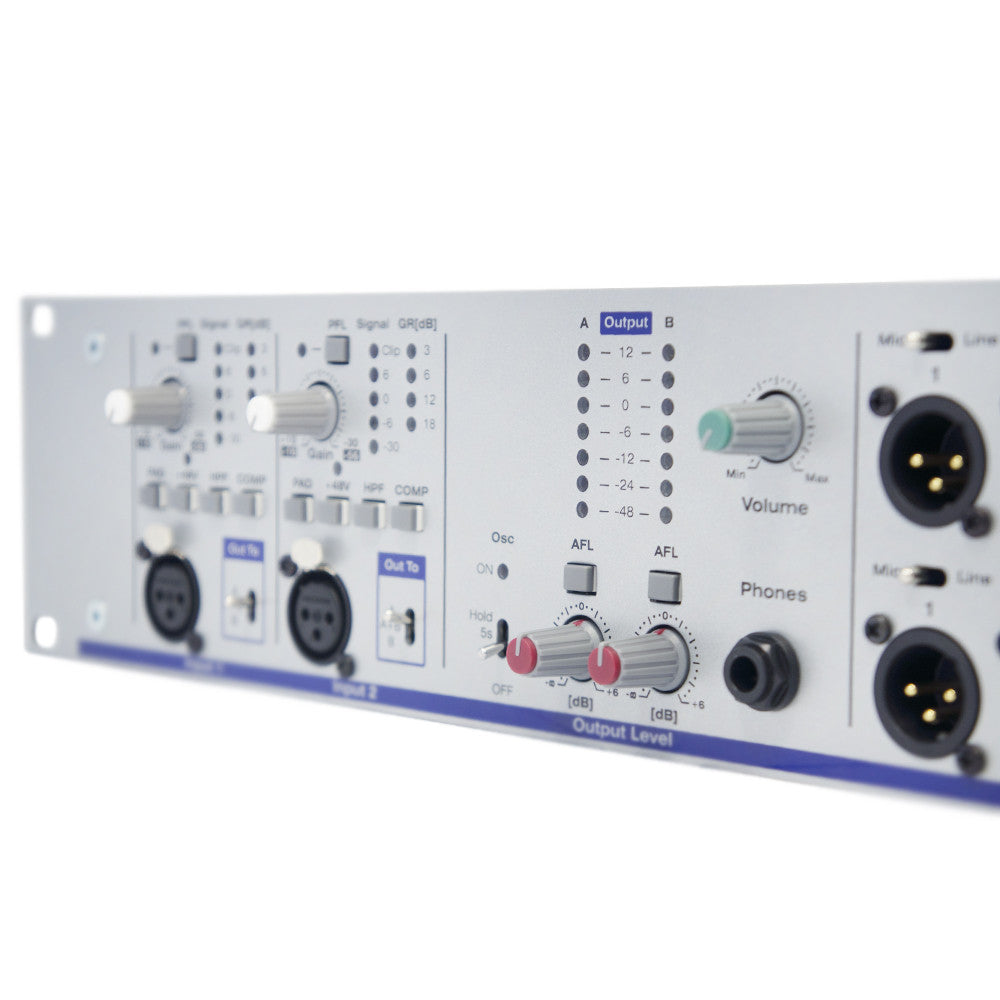

Controls Input section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switch Output section: Oscilator, Output level for bus A and bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
Indicators Input section: Input clip, Phantom power, Input level, Gain reduction, PFL Output section: Output level for Bus A and Bus B, Oscillator, Power

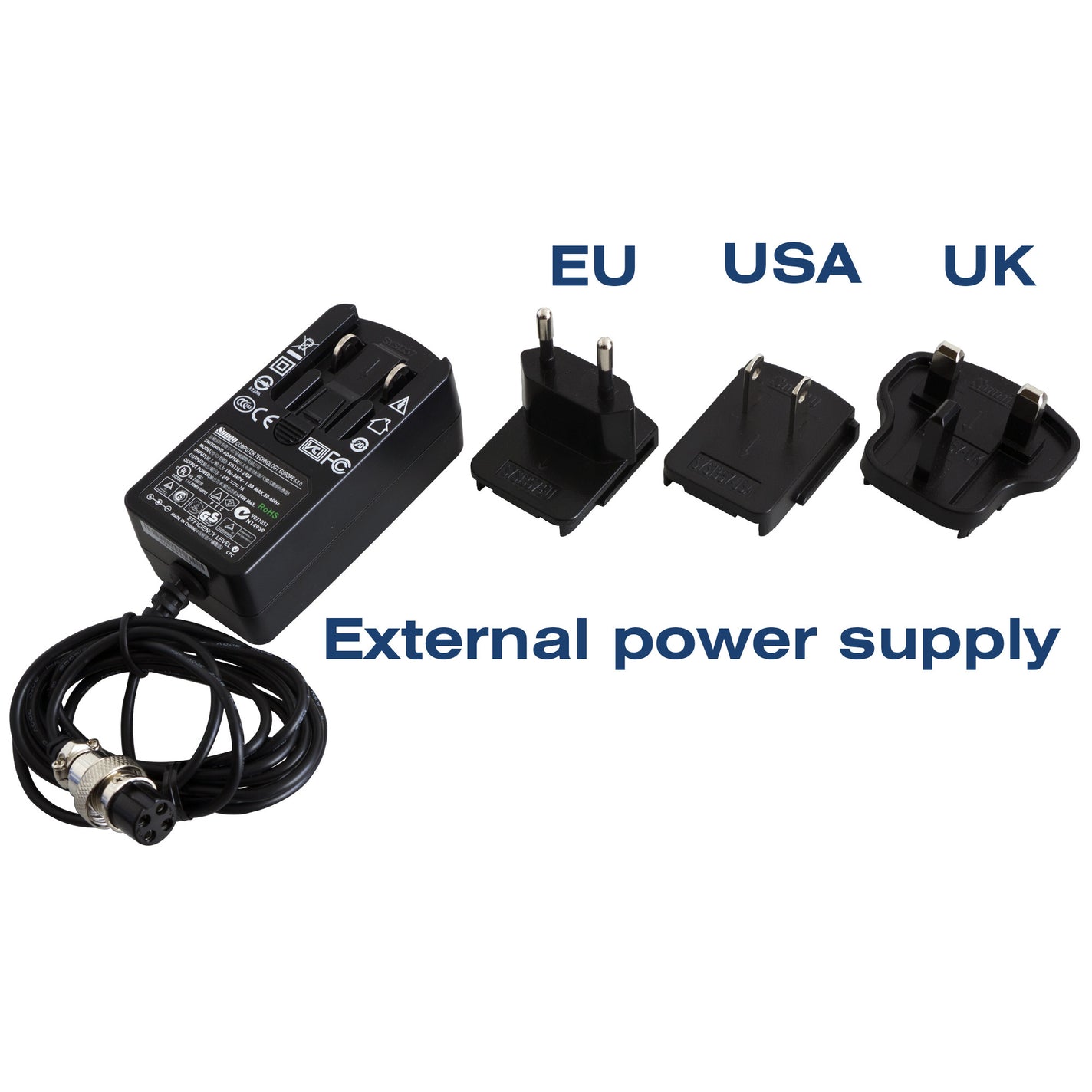

Power Supply 24V DC, 1A external adaptor
Dimensions (WxHxD) 2 RU, 480x135x90mm
Weight 3230 g
