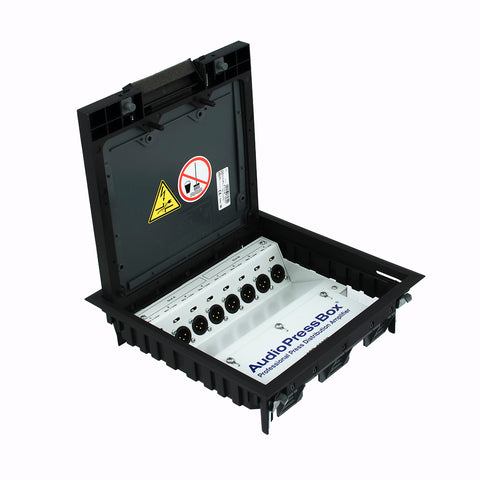

AudioPressBoxAPB-008 FB-EX


Floor box design with 8 routable Line/MIC outputs

A professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation.

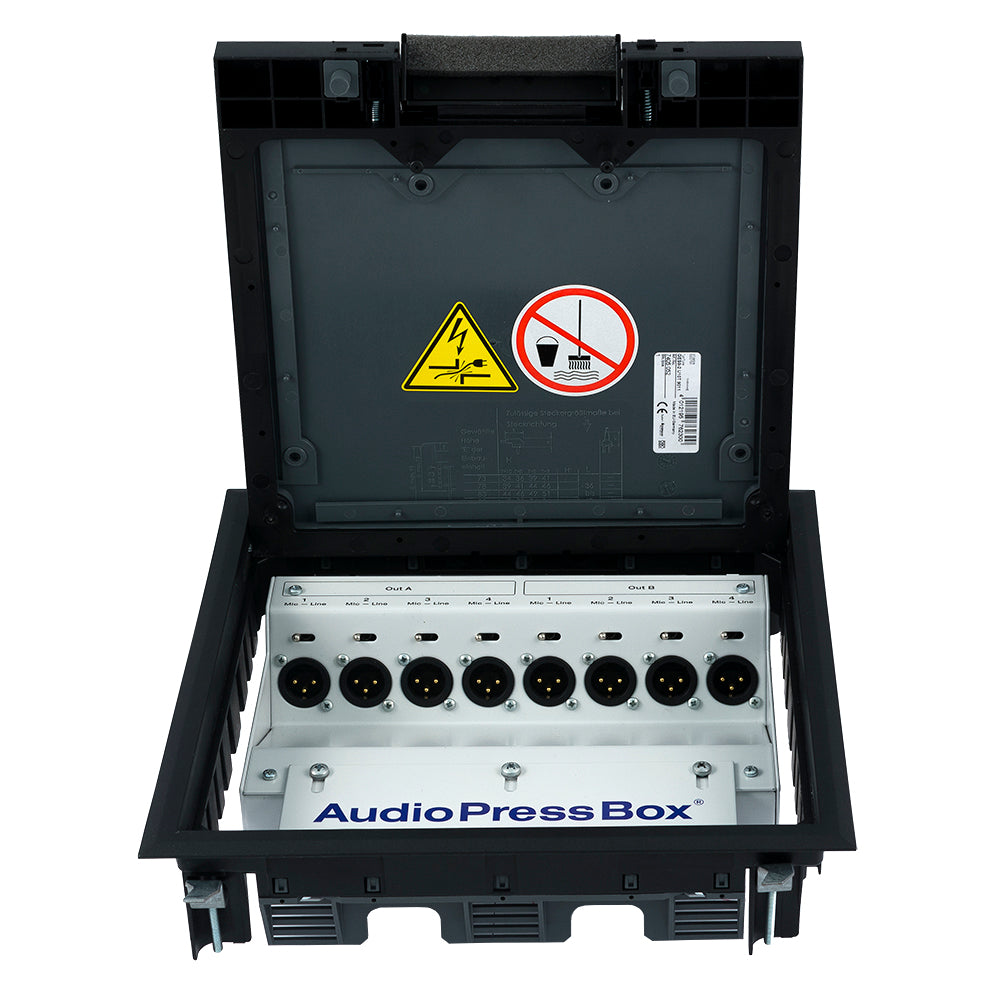

The FB stands for Floor Box as it is for installation into the floor.
Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.

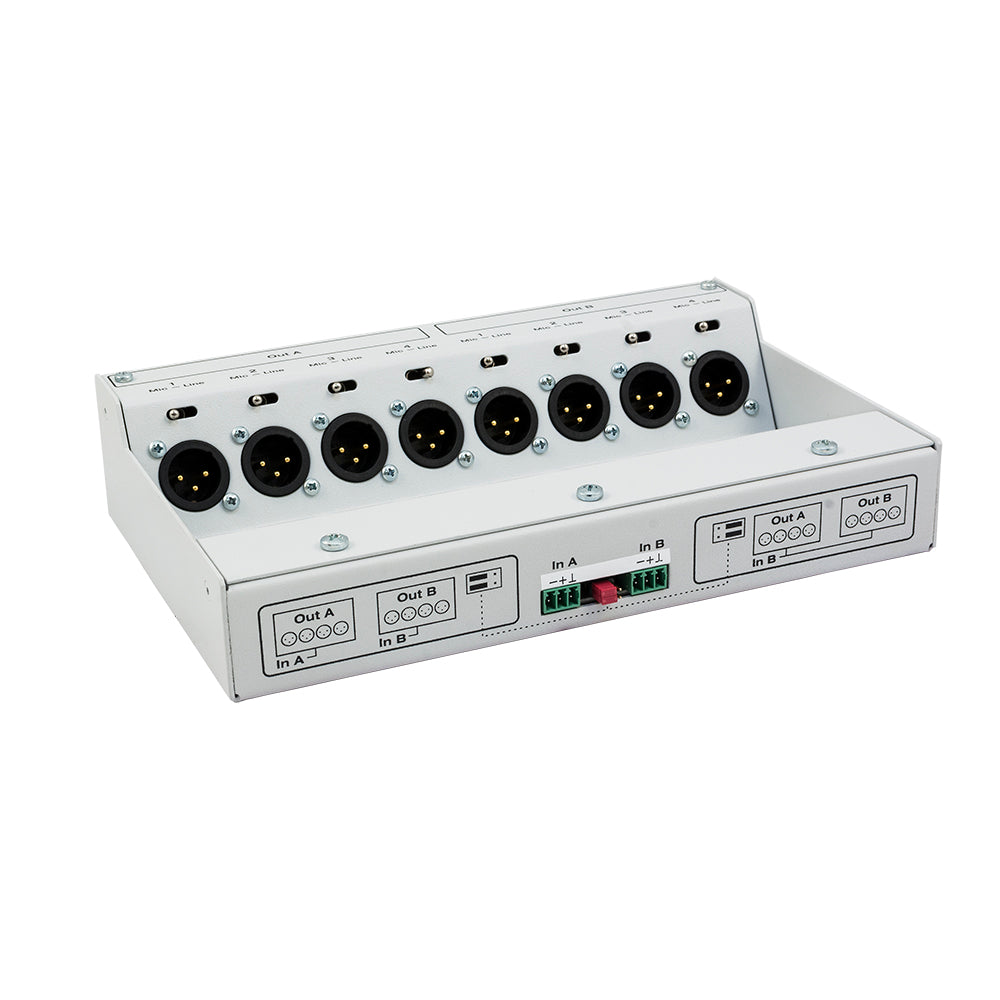

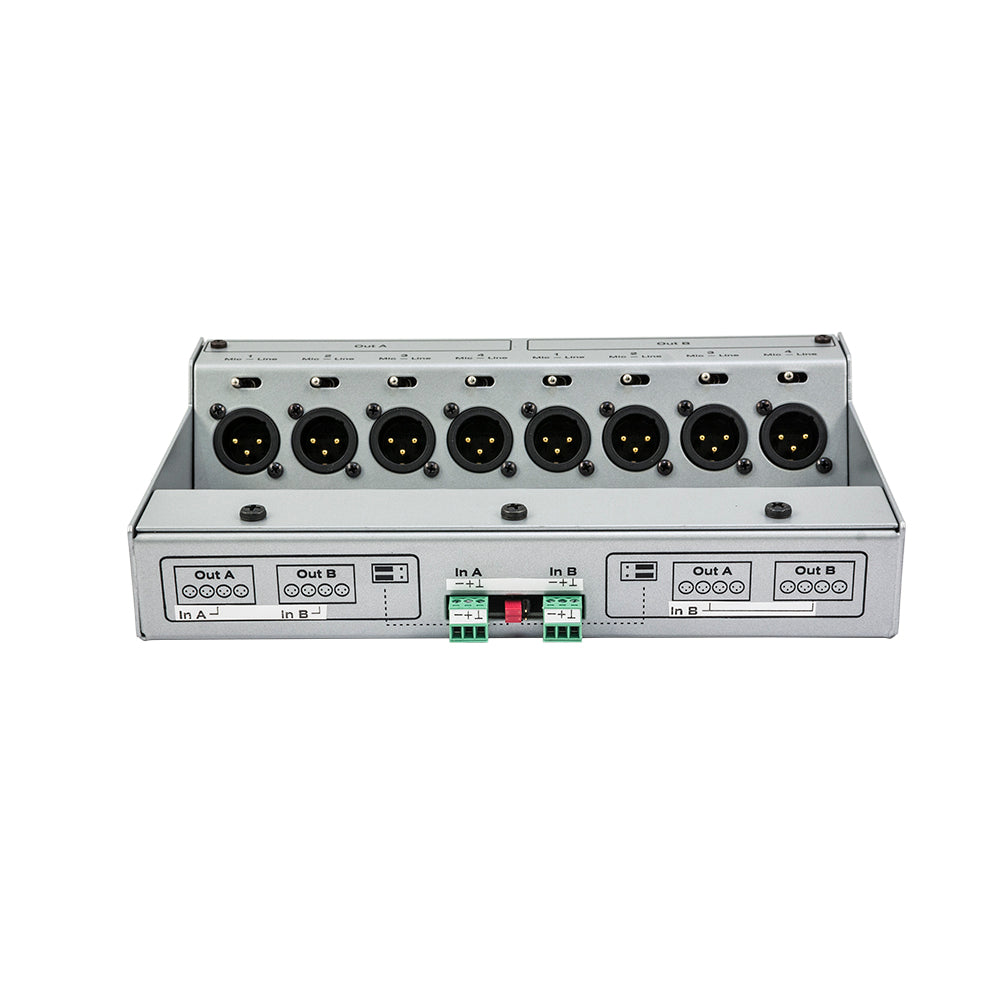

It has 2 inputs with 3-pin phoenix connectors, one for each Output channel.

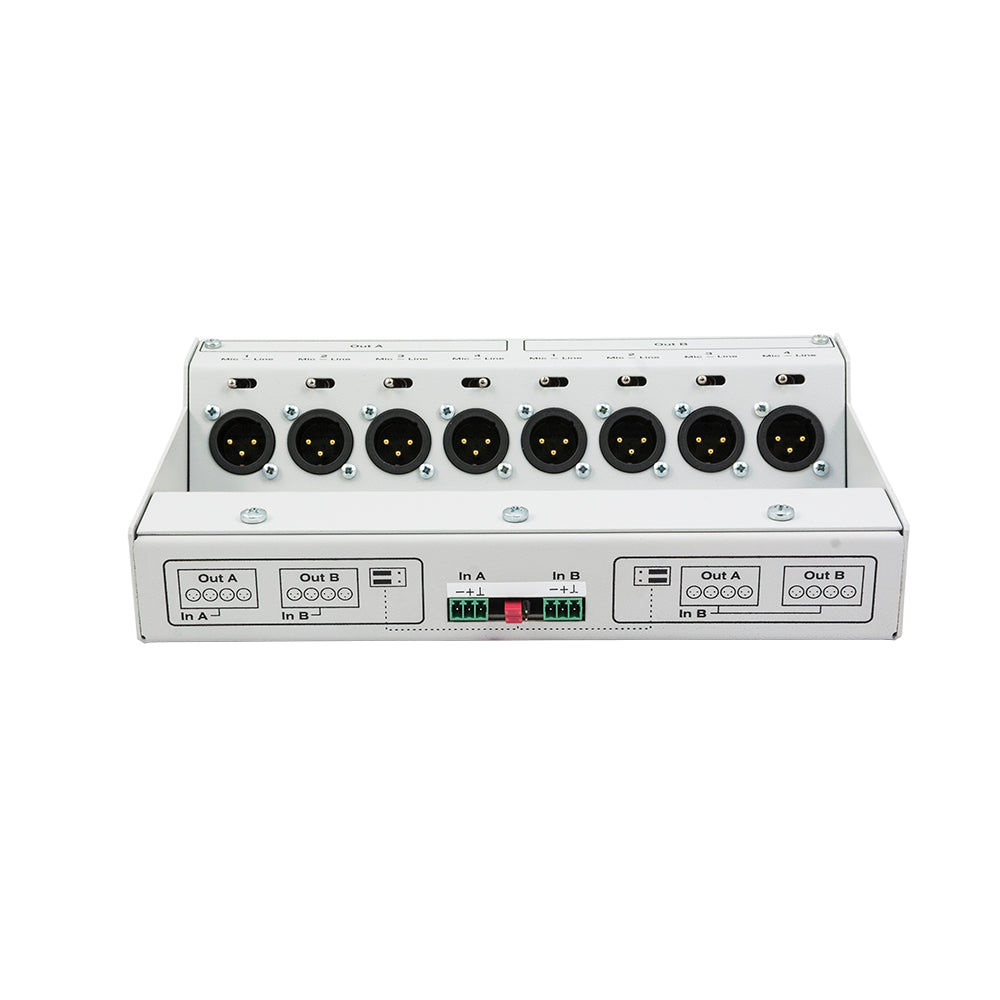

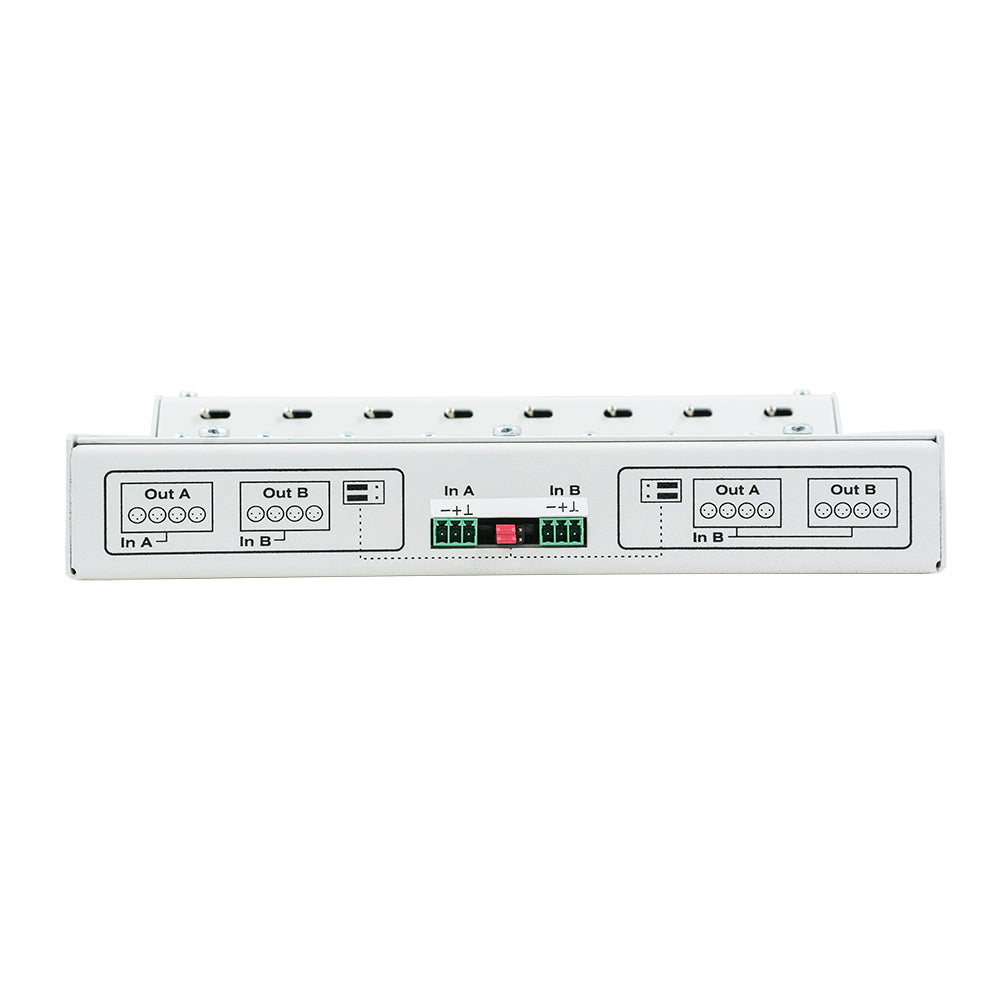

You can route each Input to Output Channel A or B or both via jumpers.

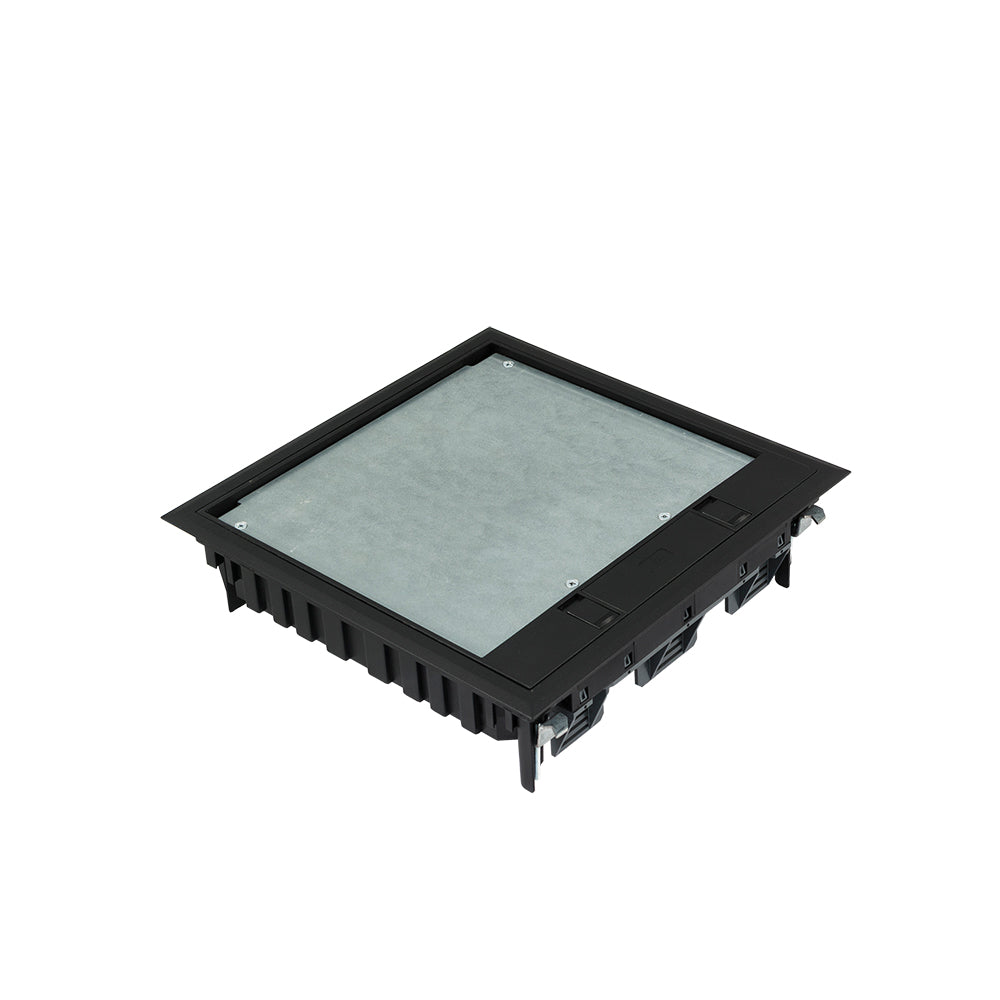

It is compatible with floor boxes from OBO Bettermann and PUK.

The expander must be fed with an APB-Drive unit in order to function properly.

REQUIRES A DRIVE UNIT: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY


  • 8 High quality balanced Outputs, each Output is independent transformer isolated
  • Each Output is switchable between LINE or MIC Output level.
  • Two groups (A,B) with for 4 Outputs per group
  • It is compatible with floor boxes from OBO Bettermann and PUK
  • AudioPressBox delivers audio in broadcast quality


Note: Source: APB-D100, APB-D100 R, APB-D116 R-DANTEAPB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTEAPB-208 R (RPS), APB-400 R (RPS)

8x TRANSFORMER Transformer Separately transformer isolated outputs.

Press conference with a mixing console and speakers:

 AudioPressBox, Mult Box, PressBox, Mult Box, Press Patch Box, Pressesplitter, APB-008 FB-EX

 AudioPressBox APB-008 FB-EX
Type Expander
Groups 2
Inputs

1x Bus A
1x Bus B

Input connectors ballanced, 3-pin phoenix connector
Ouputs

4x Bus A, Line/MIC level
4x Bus B, Line/MIC level

Output connectors ballanced, transformer isolated, XLR-M connector
Transformer isolated outputs Yes (each output)
Nominal Output level

MIC: -20dBu
LINE: +6 dBu

Output Impedance MIC: 220Ω
LINE: 600Ω
Dimensions (WxHxD) 225x145x50mm
Weight 2190g
