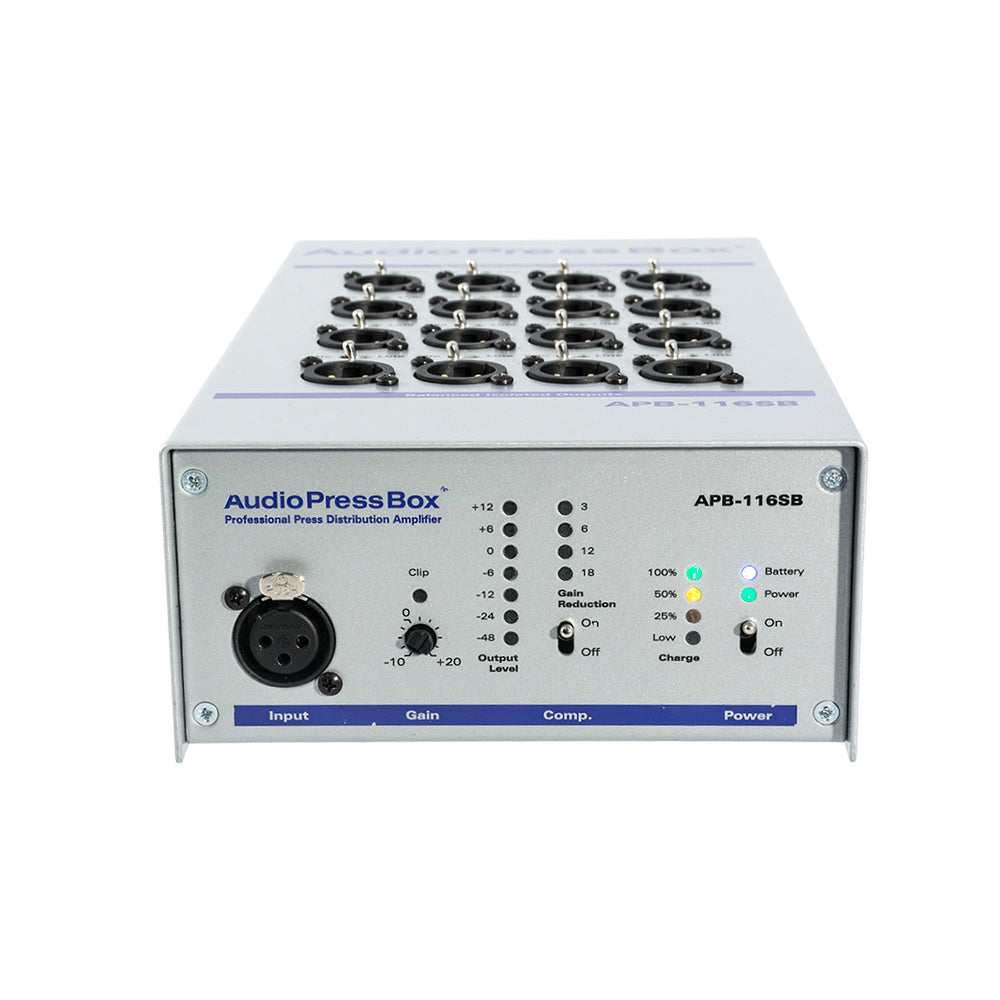

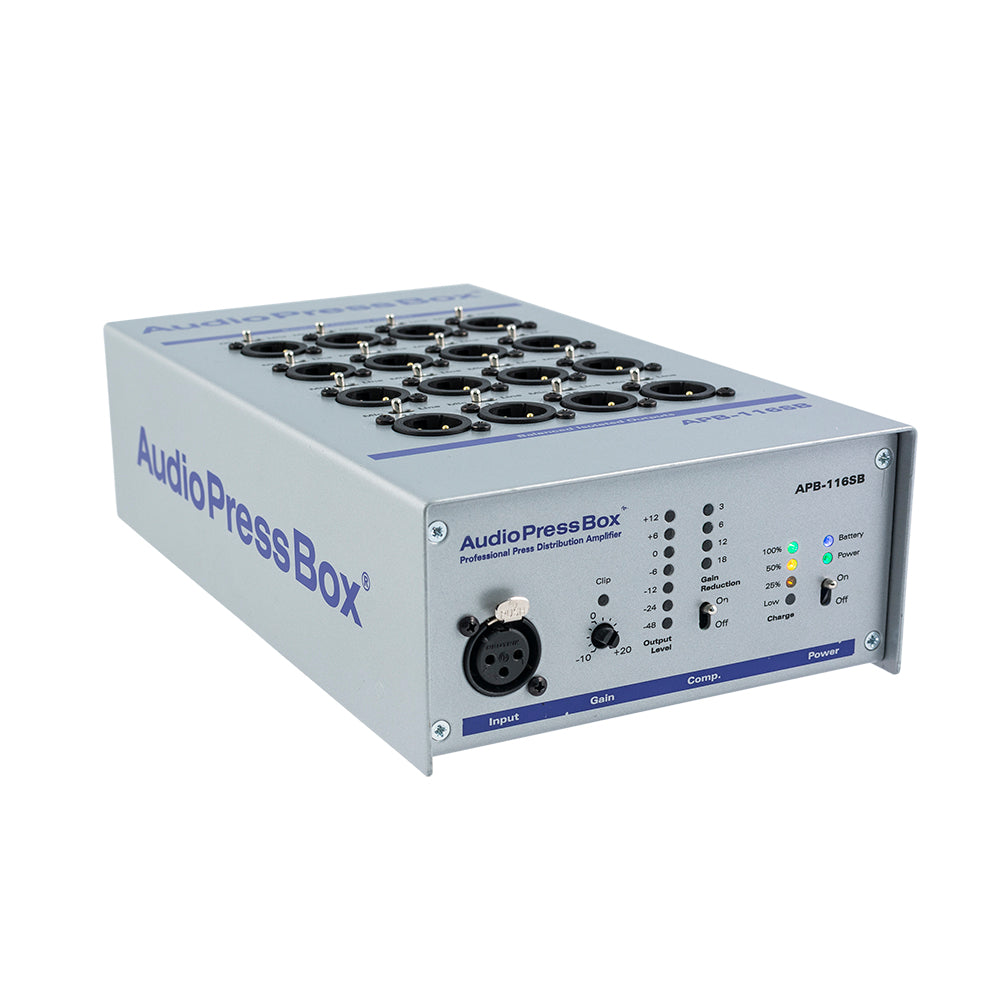

AudioPressBoxAPB-116 SB

Active, Portable, 1x LINE Input, 16 Line/MIC Outputs, internal AccuPack 10 hours

A professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences.
It features 1 Line Input and 16 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
The APB-116 SB also includes a rechargeable AccuPack so it can run on its own up to 10 hours.


IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY


  • 1x LINE Input – balanced with ajustable gain -10db to +20 dB

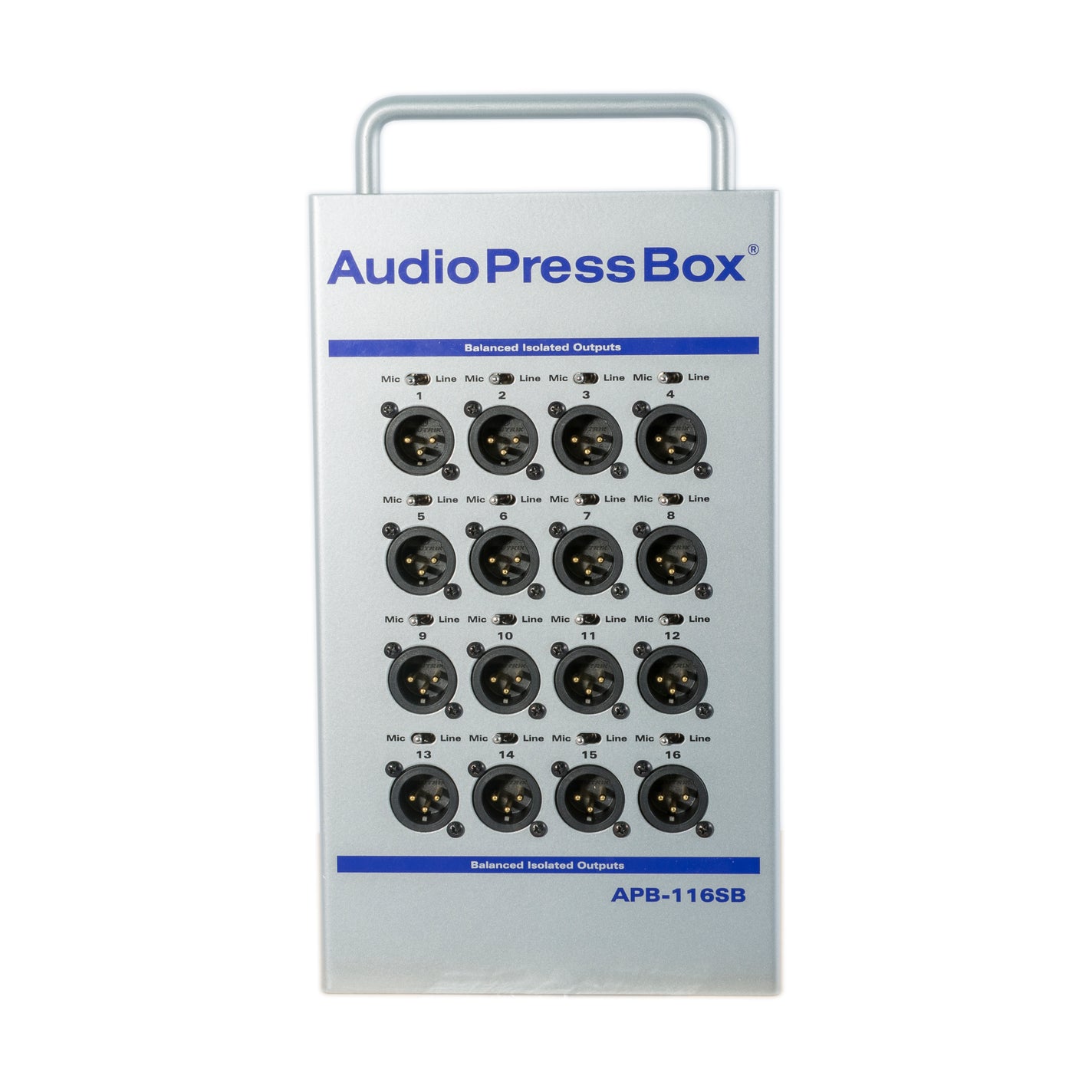

  • 16 High quality independent transformer balanced and isolated outputs
  • Each Output is switchable between MIC or LINE level
  • Built in High-Pass filter on the frequency of 40Hz
  • Switchable Compressor and Limiter for Input channel
  • Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 10 hour full load capacity. Note: AccuPack is placed inside the unit
  • AudioPressBox delivers audio in broadcast quality

COMP COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.
HPF HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.
16x TRANSFORMER Transformer Separately transformer isolated outputs.
Rechargeable batteries Optional Built-in Li-Ion battery pack with microprocessor controlled battery management, 10 hour working time at full load. No self-discharge and memory effect, always ready to use. Short charging time compared to conventional batteries.

Press conference with a mixing console and speakers:

AudioPressBox, Mult Box, PressBox, Mult Box, Press Patch Box, Pressesplitter, APB-116 SB



Audio Press Box APB-116 SB
Type 1 IN/ 16
Groups 1
Input section
Inputs 1
Input connectors Balanced, XLR
Max. input level Line: +32/+2dBu
Input Impedance >5kOhm
Output section
Outputs 16 Line/MIC level
Output connectors Balanced, XLR
Nominal Output Level - -6/0/+4/+6 dBu
Max. Output Level +20dBu (no load) +16dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output is Independant Transformer Isolated)
SNR 86dB at 0dB Gain 78dB at +20dB Gain
Frequency Response 30/160Hz (filter) to 60kHz/-1dB
Controls Input gain, Compressor,Power, Output PAD
Indicators Input clip, Output level, Gain reduction, Power, Battery status

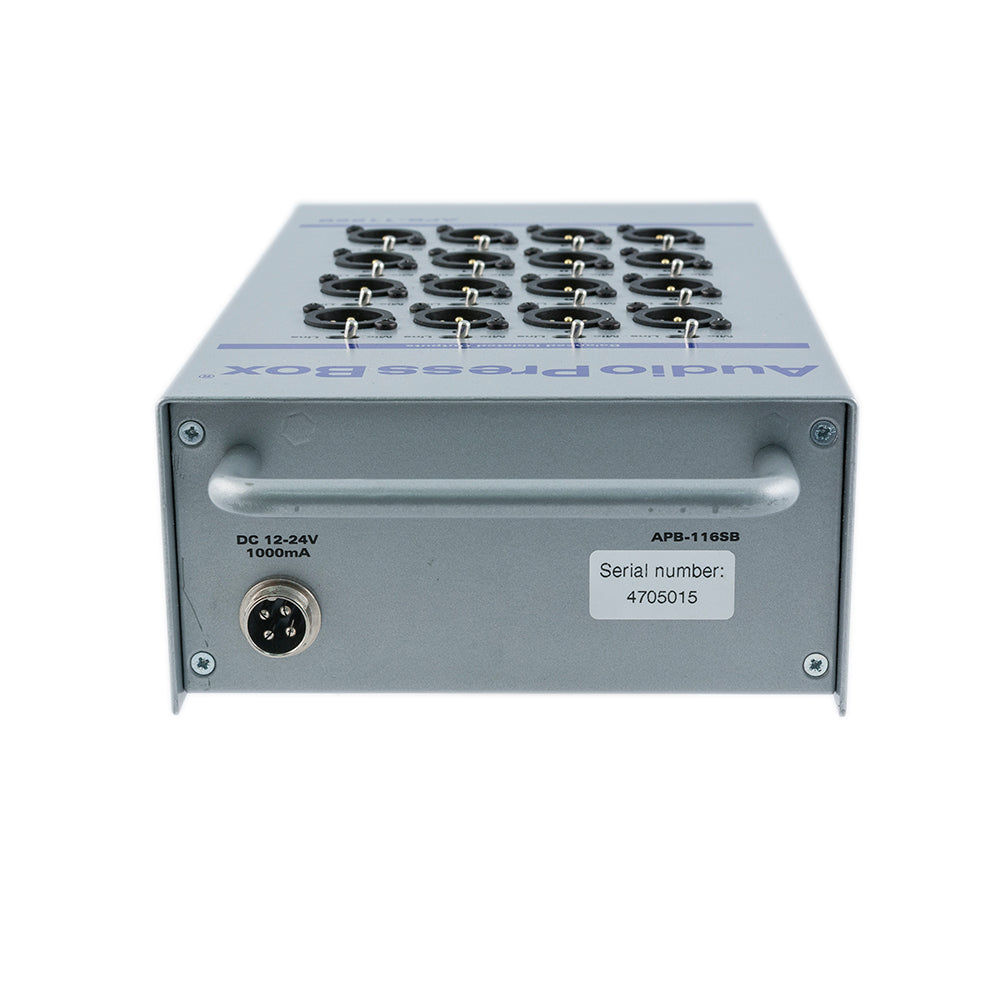

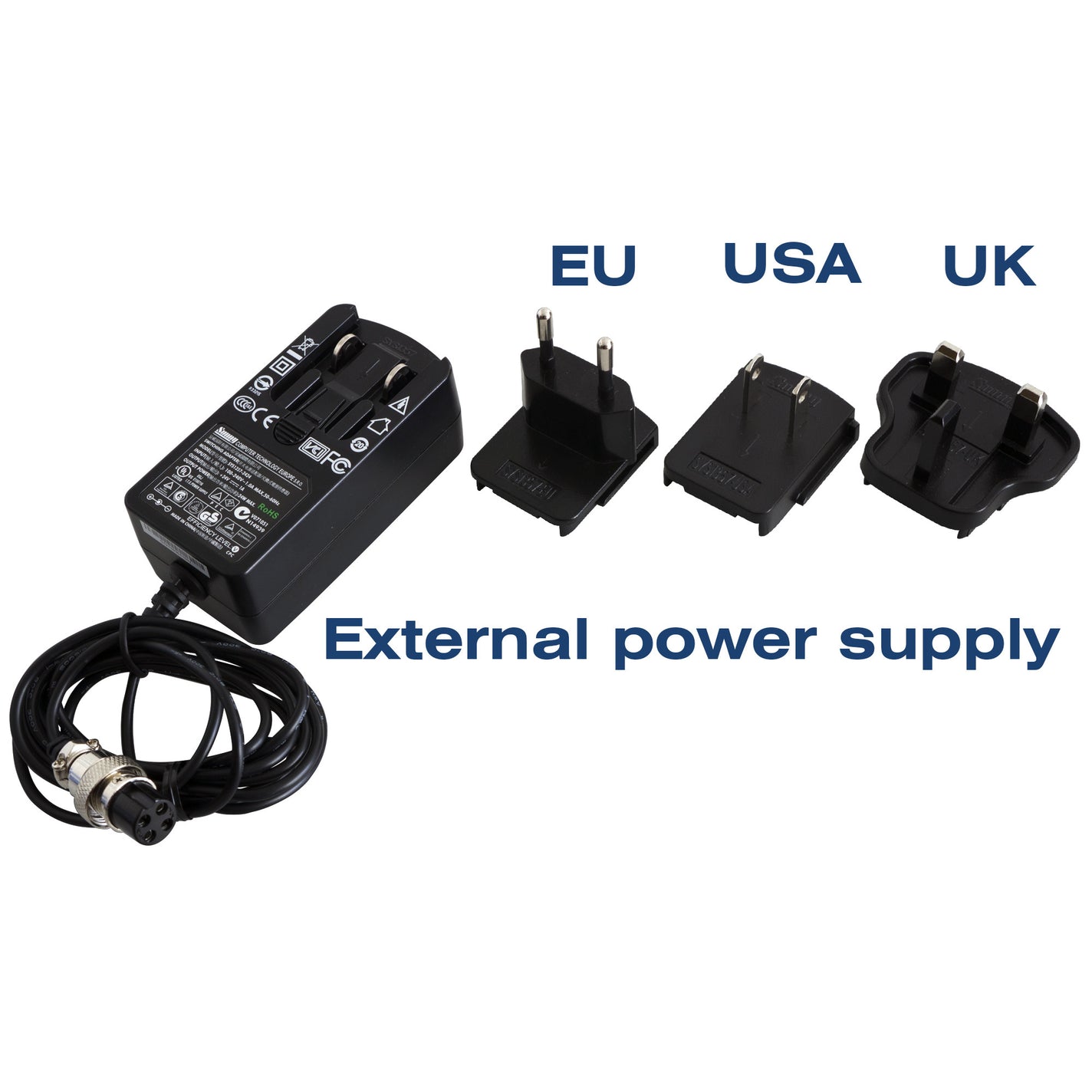

Power Supply 24V DC, 1A external adaptor
Battery Li-Ion, 7.2V 2200mAh, operation time 10 hours
Dimensions (WxHxD) 150x295x75mm
Weight 2920 g

If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
