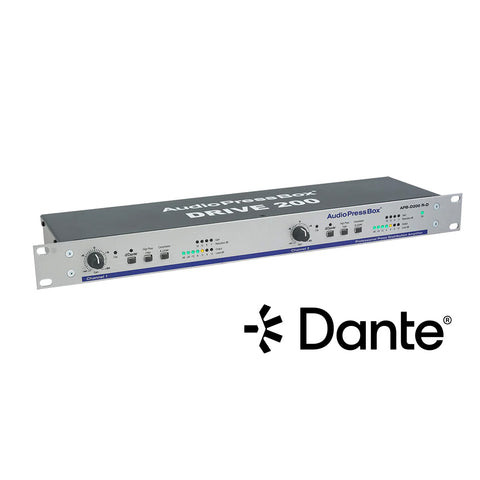

AudioPressBoxAPB-D200 R-D

Active 19” rack AudioPressBox distribution Drive Unit, Dante Interface - 2 channels, 2 LINE Inputs, 4 buffered Outputs for 12 AudioPressBox expanders

APB-D200 R-D features Analogue and DANTE inputs with high-quality digital-to analogue converters, supporting a range of sample rates and bit depths. It can provide a hardware master clock for a Dante network. As with other Dante products, the freely available Dante Controller software application is used to automatically discover and configure APB-Dante devices connected to the Dante network. Device names, channel labels, signal routing and other parameters (for example, sample rate and latency) can be configured via the network using Dante Controller. A variety of network and clock synchronisation diagnostic tools are also available in Dante Controller.

APB-Dante products use Power over Ethernet (PoE). Power can be provided through the Ethernet cable from a PoE-capable network switch, or from a separate PoE injector.

PoE Power Consumption: < 2 Watt

 CAUTIONIf using a PoE injector, it must be IEEE 802.3af compliant. Use of a non-compliant PoE injector can terminally damage the device and may void the warranty.

Available Software Options:

Dante Controller

Dante Via

Dante Virtual Soundcard



Professional active 19'' rack AudioPressBox Drive unit • DANTE interface - 2 channels  2 balanced LINE Inputs • Switchable High-Pass filter • Switchable Compressor and Limiter for Input channel • 4 separately buffered Outputs for 12 AudioPressBox 8-output expanders.

Drive unit for : APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX

IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY




  • Professional active 19” rack AudioPressBox Drive unit
  • DANTE interface - 2 channels
  • 2 Channels (balanced LINE Input / DANTE)
  • Switchable High-Pass filter for for each Input channel
  • Switchable Compressor and Limiter for for each Input channel
  • 4 separately buffered Outputs (2 for each channel) that can drive 6x APB-008 or 2x APB-024 Output expanders.
  • Maximum drive capacity 96 Line or Mic Outputs.
  • AudioPressBox delivers audio in broadcast quality

Note: Source of: APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX

COMP COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.
HPF HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.
24V 24V DC Power Supply
driver 4x24 2 x 2 buffered expander outputs





Audio Press Box APB-D200 R-D
Type

2 Line/DANTE input channels

4 Drive OUT for 12xAPB 8-Output expanders or 4xAPB 24-Output expander

Note: Total capacity:

96 Line/Mic outputs (12x APB-008 xx-EX or 4x APB-024 R-EX)

Groups 2
Input section
Inputs 2 LINE / 2 DANTE
Input connectors Balanced, XLR, RJ45 - DANTE
Max. input level Line: +32/+2dBu
Input Impedance >5kOhm
Output section
Outputs 4 separately buffered, balanced outputs for AudioPressBox expanders
Output connectors Balanced, XLR
Nominal Output Level +6 dBu
Maximum Output Level +20dBu with 48 Outputs in use
+16dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each EXPANDER output is Independent Transformer Isolated)
SNR 86dB at 0dB Gain
78dB at +20dB Gain
Frequency Response 30/160Hz (filter) to 60kHz/-1dB
Controls Input gain, Compressor and Limiter, High Pass Filter, Power
Indicators Input clip, Output level, Gain reduction, Power
Power Supply 24V DC, 1A external adaptor
Dimensions (WxHxD) 480x120x44
Weight 2090g

If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
